Problem
The current vault settings UI exposes cryptographic terminology (keys, principals, mnemonics, delegations) that confuses normal users. We need to redesign the vault settings screens with fully simplified language and intuitive metaphors that feel familiar to mainstream users.

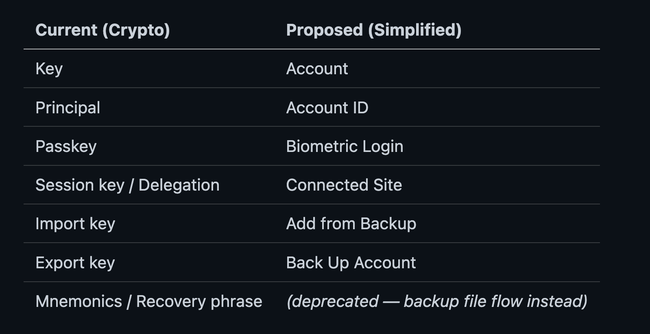

Terminology Mapping
Information Hierarchy
The vault has two distinct levels that every approach must respect:
Vault level (applies to ALL accounts): Biometric Login, Master Password, Email Address
Account level (per individual account): Profile, Account ID, Connected Sites, Back Up Account, Delete Account
Implementation Notes
All wireframes use shadcn/ui component patterns (cards, buttons, inputs, badges, sidebar, drawer)
Typography: Inter (headings/body), Geist Mono (Account IDs)
Frame sizes: Desktop 1280x800, Mobile 390x844
Approach 1: Digital Wallet
Sketches:
main view
key detail
mobile
Mental model
A wallet holding identity cards. You open it, see your cards, tap one for details.
Navigation pattern
Grid browse → detail view (back arrow to return)
Structure:

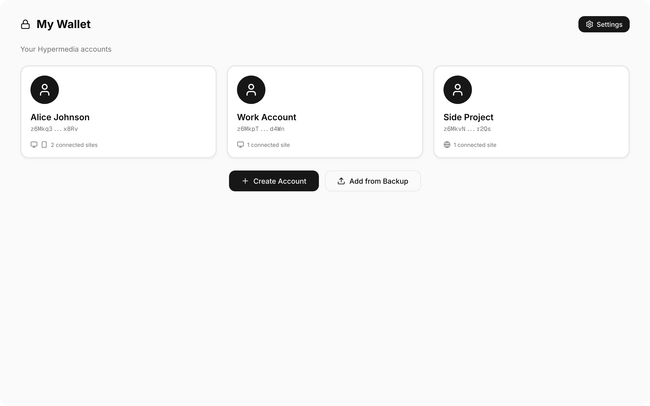

Home screen: Card grid showing all accounts. Each card displays avatar, name, truncated Account ID, and connected sites count. "Settings" button in the header opens vault-level settings (biometric, password, email).

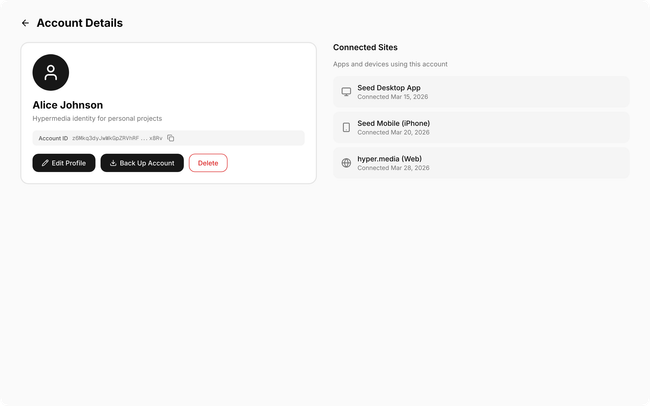

Account detail: Two-column layout — profile card on the left (name, description, Account ID, actions), connected sites list on the right. Actions: Edit Profile, Back Up Account, Delete.

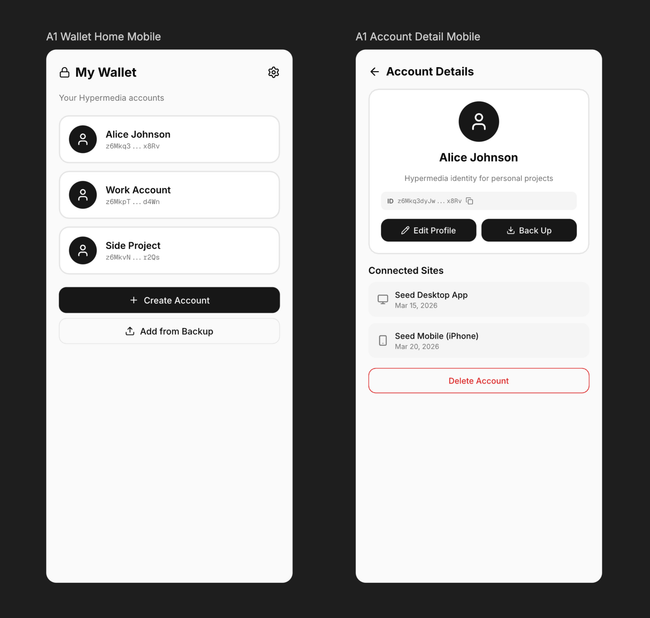

Mobile: Cards stack vertically. Detail becomes single-column scroll.
What makes it different:
Accounts are browseable as physical-feeling cards with subtle shadows
Each card is a self-contained preview — you can see at a glance how many sites use it
The vault settings (biometric/password/email) are accessed via a separate "Settings" button, keeping them clearly separated from per-account settings
Best for users who think of their identities as distinct "things" they carry
Tradeoffs
(+) Strongest visual metaphor — wallet cards are universally understood
(+) Each account feels like a distinct, tangible object
(-) Requires navigation to see account details (no glanceable detail)
(-) Vault settings hidden behind a button — users might not discover them
Approach 2: Profile Hub
Sketches:
main view
Vault settings
mobile
Mental model
Social media profile page with account switching.
Navigation pattern
Horizontal chip switcher → inline profile + settings below
Structure

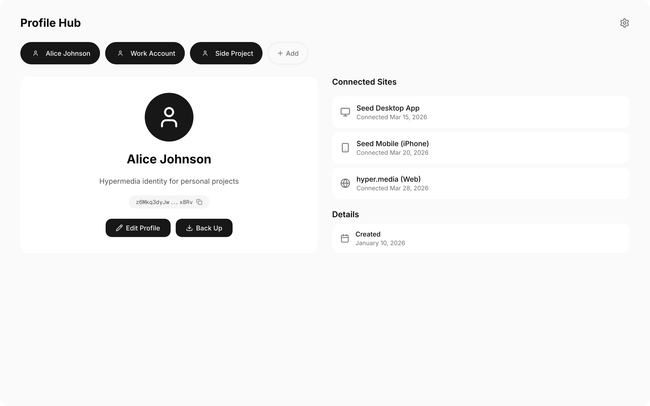

Main view: Account chips at the top (horizontal pills). Selected account shows large centered avatar, name, description, Account ID, and action buttons. Right column shows connected sites list with device icons and dates.
Vault settings: Separate "settings" screen (gear icon) with auth methods (biometric, password) and email address. Accessible from main view header.

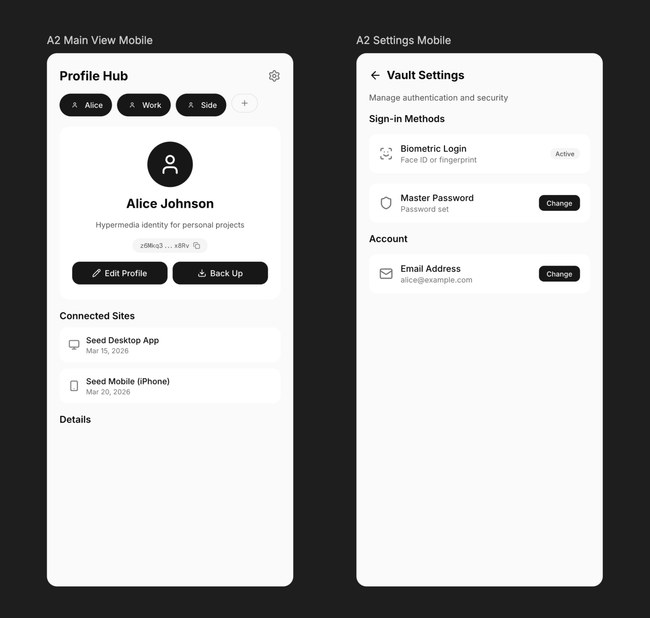

Mobile: Chips become horizontally scrollable. Content stacks vertically.
What makes it different
Profile-centric — the avatar is the dominant visual element, making it feel personal
Chip switcher makes multi-account management feel like switching between social profiles (Instagram-like pattern)
Connected sites are always visible alongside the profile, showing the relationship between identity and where it's used
Account actions (Edit Profile, Back Up) live directly on the profile card
Tradeoffs
(+) Most familiar pattern for mainstream users (social media settings)
(+) Profile-first design makes the "who am I" question immediately answerable
(+) Chip switcher scales well for 3-5 accounts
(-) Chip switcher could get crowded with 10+ accounts (horizontal scroll needed)
(-) Vault settings require navigating to a separate screen
Approach 3: Unified Dashboard
Mental model
Mission control / control room. Everything visible at once.
Navigation pattern
Three-column layout — all information on one screen, no navigation needed
Structure

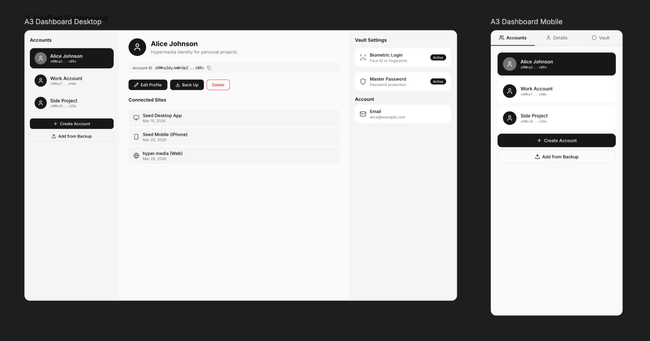

Desktop: Three columns side by side:
Left: Account list sidebar with avatars + names. Create Account and Add from Backup buttons at bottom.
Center: Selected account detail — profile header, action buttons (Edit Profile, Back Up, Delete), and connected sites list below.
Right: Vault Settings panel — Biometric Login and Master Password as toggle rows, plus Account Email below.
Mobile: Replaced by a 3-tab layout (Accounts | Details | Vault) with each tab showing one column's content.
What makes it different
The only approach where vault settings AND account details are visible simultaneously on desktop
Zero navigation clicks to see everything — ideal for users who manage multiple accounts frequently
The three-column layout creates clear visual separation between the "what" (accounts list), the "who" (account detail), and the "how" (vault security)
Mobile tabs maintain the same mental model, just serialized
Tradeoffs
(+) Most information-dense — power users see everything at a glance
(+) Clear spatial separation of concerns (accounts / detail / security)
(+) No modals, drawers, or secondary screens on desktop
(-) Busiest layout — could feel overwhelming for non-technical users
(-) Three columns require a wide viewport; mobile experience is fundamentally different (tabs)
(-) Less breathing room per section
Approach 4: Sidebar Navigation
Sketches:
Mental model
Native app settings (Notion, Slack, VS Code). Sidebar = table of contents.
Navigation pattern
Persistent sidebar with navigation categories → spacious content area on the right
Structure
Sidebar: Account switcher dropdown at top, then two groups:
ACCOUNT: Profile, Connected Sites, Backup & Restore
VAULT: Sign-in & Security, Email
Content area: Full-width, generous padding. Shows the selected section:

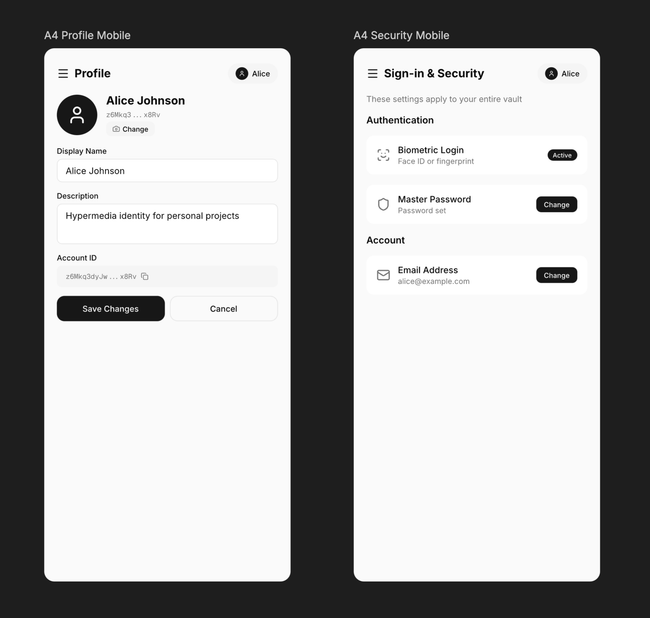

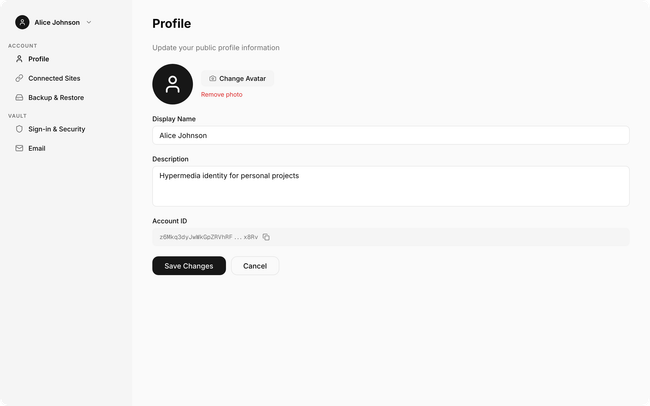

Profile: avatar, display name input, description input, Account ID display, Save/Cancel

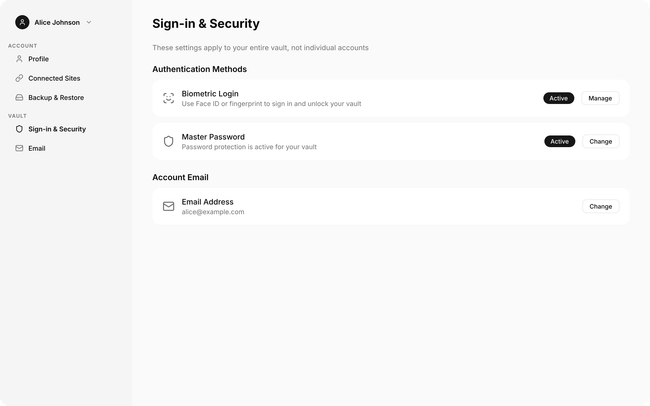

Sign-in & Security: Biometric Login + Master Password rows with Active badges and Manage/Change actions, plus Email Address row
Mobile: Sidebar collapses. Navigation becomes a stacked list or hamburger menu.
What makes it different
The sidebar explicitly labels the hierarchy: "ACCOUNT" group vs "VAULT" group — the structure itself teaches users the difference
Each section gets full breathing room with generous whitespace
Scales infinitely — adding new settings sections just adds sidebar items
The content area feels like a real form/settings page, not a card or dashboard
Account switcher dropdown works well regardless of account count
Tradeoffs
(+) Most scalable — adding future settings sections doesn't change the layout
(+) Sidebar labels make the vault/account hierarchy self-documenting
(+) Familiar pattern from every native app settings page
(+) Account switcher dropdown handles any number of accounts gracefully
(-) Requires multiple clicks to navigate between sections
(-) Only one section visible at a time — no cross-referencing
(-) Mobile sidebar patterns (hamburger/sheet) have known discoverability issues
Approach 5: Guided Layers
Sketches:
Mental model
Apple-like progressive disclosure. Simple surface, detail on demand.
Navigation pattern
Tile grid (home) → slide-over drawer (detail). Drawer closes to return.
Structure

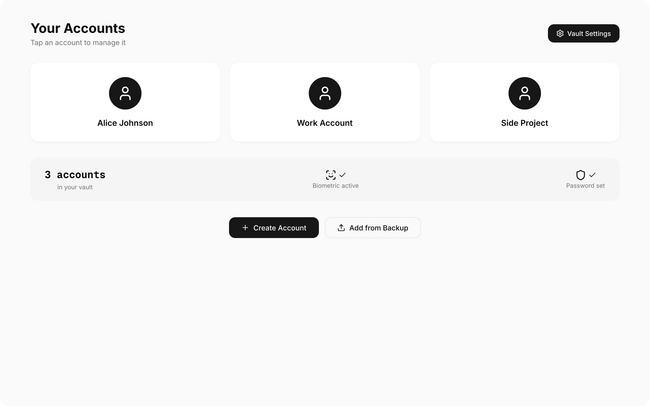

Home surface: Account tiles in a relaxed grid (avatar + name), a summary card showing "3 accounts in your vault" plus vault security status (biometric active, password set). "Vault Settings" button in header. Create Account and Add from Backup buttons below.

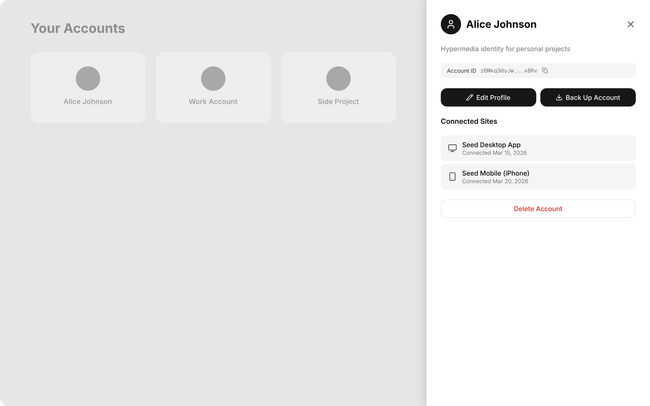

Account drawer: Slide-over panel from the right showing full account detail — name, description, Account ID, Edit Profile and Back Up buttons, connected sites list, Delete Account at bottom. Background dims to show layering.

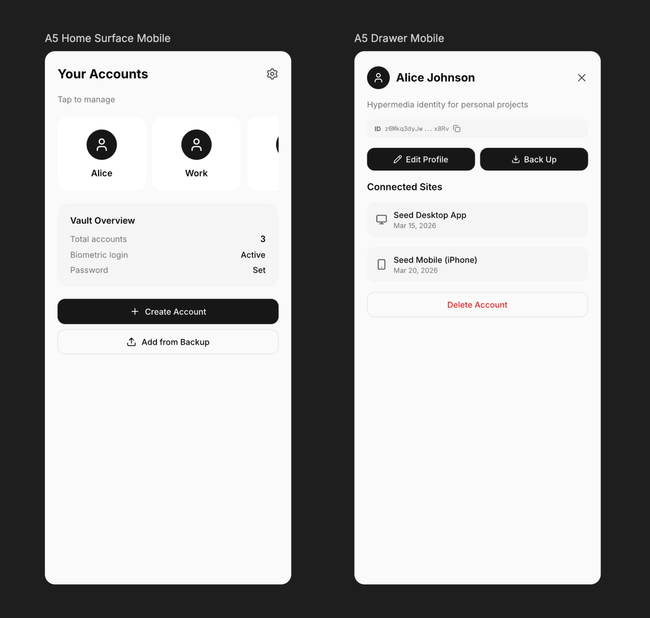

Mobile: Tiles become compact vertical list. Drawer becomes full-screen sheet.
What makes it different
Lowest cognitive load on first view — the home surface shows just tiles and a summary, nothing intimidating
Progressive disclosure: complexity only appears when you ask for it (tap a tile → drawer opens)
The drawer pattern means you never "leave" the home view — closing the drawer returns you to the same place
Vault settings summary is visible on the home surface (biometric active, password set) without requiring navigation
The dimmed background when a drawer is open creates a clear visual hierarchy
Tradeoffs
(+) Most approachable — non-technical users won't feel overwhelmed
(+) Drawer pattern is forgiving — close = return to safety
(+) Home surface provides a vault-level health overview at a glance
(+) Works equally well on desktop and mobile (drawer → sheet)
(-) Requires a tap to see any account details
(-) Drawer overlays the home surface, so you can't see the overview while in detail
(-) Vault security stats on home surface could become stale or misleading

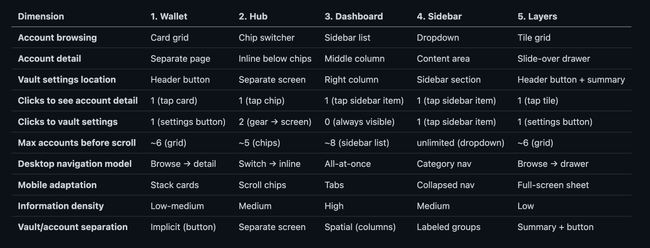

Structural Comparison
Recommendation
All 5 approaches are viable. The choice depends on user research:
Most familiar: Approach 2 (Profile Hub) or Approach 4 (Sidebar Nav) — users have seen these patterns before
Most powerful: Approach 3 (Unified Dashboard) — everything visible at once, zero navigation
Most approachable: Approach 5 (Guided Layers) — lowest cognitive load, progressive disclosure
Most distinctive: Approach 1 (Digital Wallet) — strongest metaphor, most "product-y" feel
Most scalable: Approach 4 (Sidebar Nav) — handles growth in settings and accounts gracefully
Key question for the team
How many accounts will a typical user have? If 1-3, approaches 1/2/5 work great. If 10+, approaches 3/4 handle scale better.
Consider testing Approach 5 (Guided Layers) with non-technical users and Approach 4 (Sidebar Nav) with power users.
